Description
Model Name

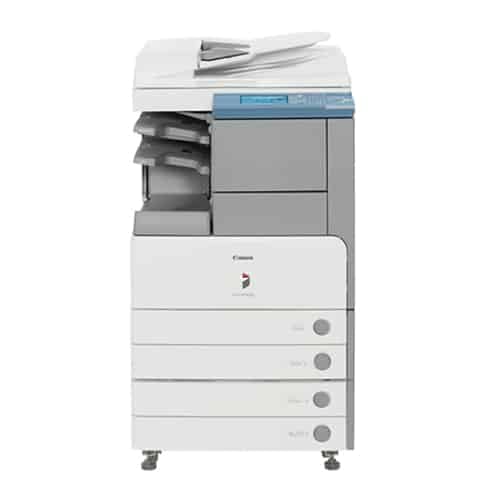

imageRUNNER 3530
Type
Digital, Multifunction Imaging System
Imaging System
Laser Electrostatic Transfer
Developing System
Dry Mono Component
Fixing System
RAPID Fusing System™
Duty Cycle
130,000
Image Server Memory
Standard: 256MB RAM
Optional: 20GB HDD
Max Mailboxes Supported
100 (with UFR II Printer Kit-E3 or UFR II/PCL Printer Kit-E2)
Max Copy Reservation
5 Jobs
Scanning Resolution
600 dpi x 600 dpi
Interpolated Resolution
1200 dpi x 600 dpi (Copy)
2400 dpi x 600 dpi (Print)
Halftone
256 Gradations of Gray
Letter
35 ppm
First Copy Time
3.9 Seconds from Platen Glass
5.9 Seconds from Feeder
Multiple Copies
1 to 999
Magnification
25% to 400% – Platen
25% to 200% – Feeder
(in 1% increments)
Standard Paper Capacity
Dual 550-sheet Paper Cassettes (1,100 Sheets)
Manual Bypass
50 Sheets
Maximum Paper Capacity
2,250 Sheets Max.
Acceptable Paper Weights
Cassette
17 lb. to 20 lb. Bond
Bypass
17 lb. to 32 lb. Bond
Duplexing
Standard Automatic Trayless Duplexing
Warm Up Time
10 Seconds or Less from Sleep Mode
15 Seconds or Less from Main Power Off
30 Seconds from Main Power Off ( With UFR II Printer Kit-E3 or UFR II/PCL Printer Kit-E2)
Exposure Control
Automatic or Manual (9 levels)
Power Requirements
120V AC, 60Hz, 10A
Dimension
29-7/8 x 22-1/4 x 27-5/8
(761mm x 565mm x 700mm)
Weight
Approx. 152 lb. (69kg)
